Setting Up ANZ Worldline

Required Credentials

  • PSP ID (Payment Service Provider ID)

  • API Key

  • API Secret

Camper BMS provides technical integration only. Your ANZ Worldline merchant account must be fully activated and approved before payments will function.

ANZ Worldline or your acquiring bank may require you to complete PCI DSS compliance requirements.

Camper BMS does not provide PCI certification or compliance assessments.

Camper BMS does not store, process, or transmit full payment card details.

You can learn more about what security controls Camper BMS has in place here.

Finding Your Credentials

  1. Log in to your ANZ Worldline Merchant Portal.

  2. In the sidebar, click Developer > Payment API.

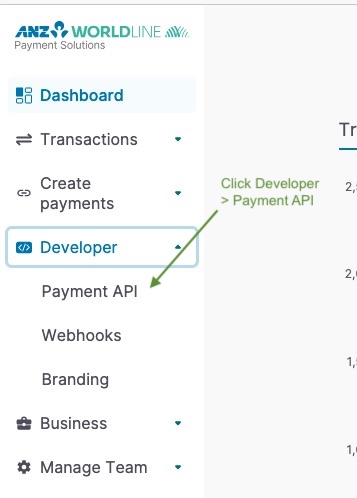

    The ANZ Worldline portal sidebar with Developer expanded and Payment API highlighted.

  3. Your PSPID is your merchant account identifier, shown in the top right of the Payment API page.

  4. Click Add API key to generate a new API key and secret.

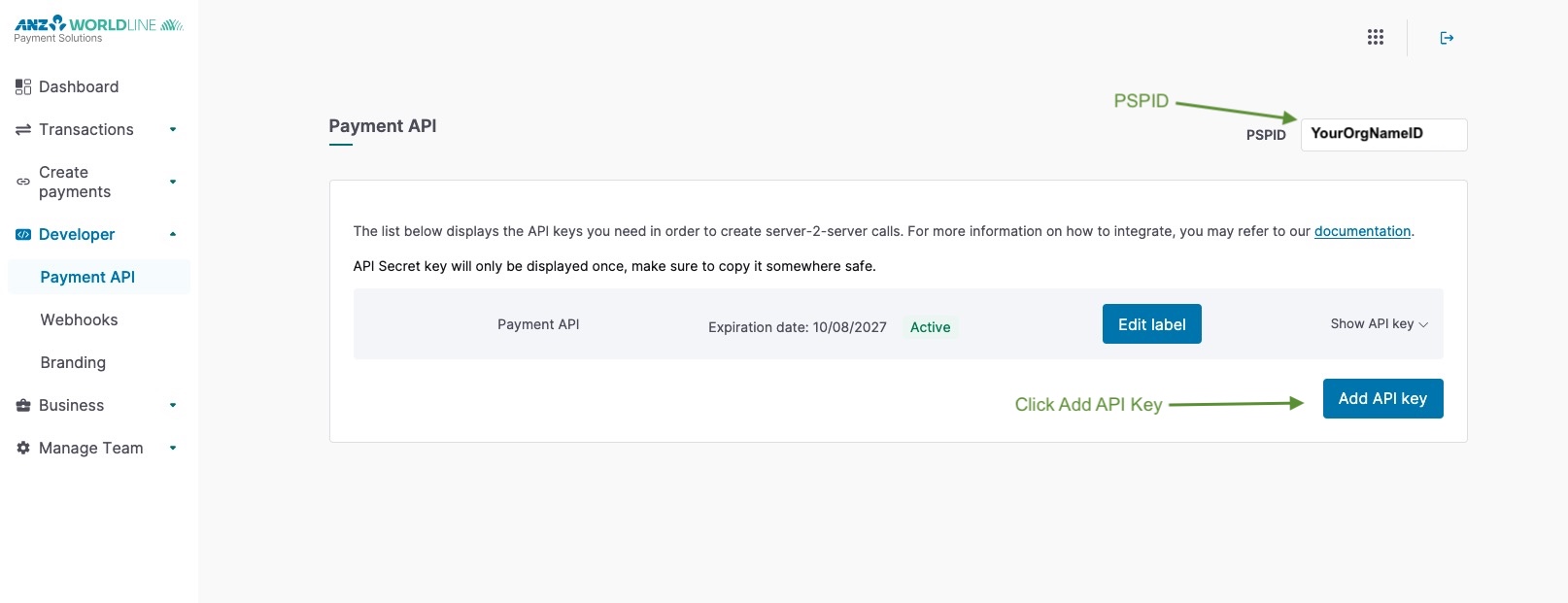

    The ANZ Worldline Payment API page showing the PSPID in the top right, the existing key with its expiration date, and the Add API key button.

  5. Click Show API key to reveal the key, then use the Copy button beside API key ID and Secret API key to copy each one.

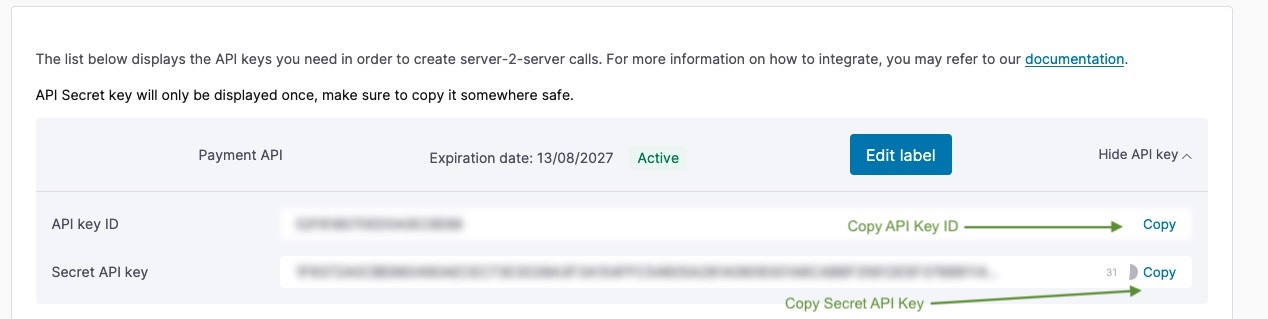

    An expanded ANZ Worldline API key showing the API key ID and Secret API key rows, each with a Copy button.

  6. The Secret API key is only displayed once. Copy it somewhere safe before leaving the page - if you lose it, you will need to create a new key.

  7. Please note your API Key will expire. Please be sure to regenerate a new key before it expires to ensure your integration continues to function. The expiry date is shown beside the key in the portal.

Entering Credentials in Camper BMS

  1. Navigate to Settings > Payments & Invoicing > Payment Gateway.

    The Camper BMS campground settings screen, with Settings in the sidebar and Payment Gateway under Payments and Invoicing highlighted.

  2. Select ANZ Worldline from the Payment Gateway Provider drop-down.

  3. Paste your PSPID into PSP ID, your API key ID into API Key, and your Secret API key into API Secret.

  4. Optionally enable 3D Secure Verification. This is gateway dependent - you may need to contact ANZ Worldline to have 3D Secure enabled on your merchant account before turning it on here.

  5. Choose a Failure Behaviour - this controls what happens to a booking if the gateway declines or fails the payment.

  6. Tick the acknowledgement to accept the payment processing terms, then click Update Payment Settings.

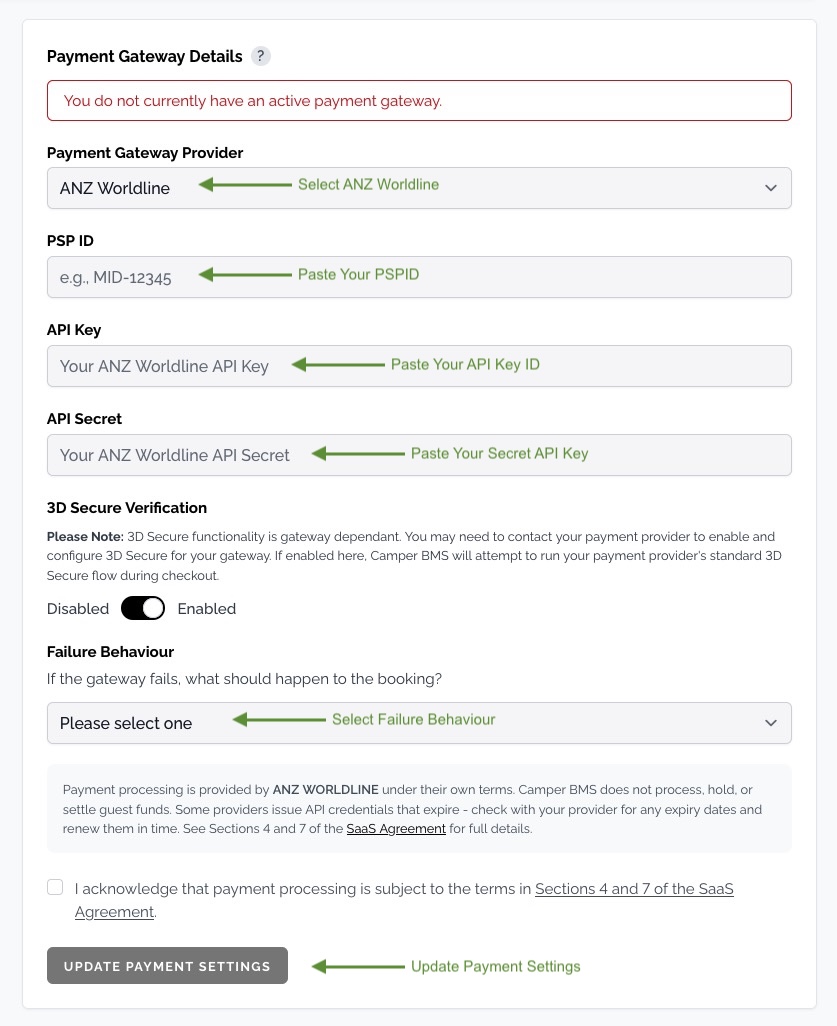

    The Camper BMS payment gateway form with ANZ Worldline selected, showing the PSP ID, API Key and API Secret fields, the Failure Behaviour drop-down, and the terms acknowledgement above the Update Payment Settings button.

Keep your API credentials secure. Anyone with access to your API Key and API Secret may be able to process payments through your merchant account.

Camper BMS uses production ANZ Worldline credentials. Test credentials are not supported.
